An I-Beam Size, Plans for Permit, and Moisture Control

This Wednesday the Pole Barn Guru answers reader questions about an I-Beam size for a lean too, plans for a county permit- included with purchase of a Hansen Building, and advice for use of insulation and barriers for new build.

DEAR POLE BARN GURU: Hey Mike I’ve got a question for you, I recently just bought new double wide in Alabama my wife wanted a lean too off the back and sent me a photo, we just got the slab completed it’s 28foot by 76 foot I want to add a top but puzzled will a 28foot I beam support a metal roof without sagging? Or will I have to have a support middle ways through? Being we are going to drive in on one side I really didn’t want a post in the middle, also if a 28 or 30 ft I beam will support it how far apart should I place them to hold metal roof. Attaching pictures for what she wants/ what we have now. Thank you. DAVID in ALABAMA

DEAR DAVID: You will need an engineer to actually size an I beam for you, however you can clearspan the 28 feet. As for spacing of beams, it (and beam size) will depend upon what you intend to place between I beams to attach steel roofing. Again, same engineer can make this determination. One thing you do not want to do is to plan upon your double wide to support high end of your beams – over time this will result in all sorts of problems (such as cracks in interior finishes and windows not wanting to open). Instead, support beams with columns.



DEAR POLE BARN GURU: 28W x 30L pole barn, single 10’w x 9’t garage door, single entry door…need plans for county permit. Where can I get? DOUG in HAVRE DE GRACE

DEAR DOUG: Your new Hansen Pole Building investment includes site-specific full multi-page 24″ x 36″ engineer sealed structural blueprints detailing location and attachment of every piece (as well as suitable for obtaining Building Permits), our industry’s best, fully illustrated step-by-step installation manual, and unlimited technical support from people who have actually built post frame buildings. Please call 1.866.200.9657 tomorrow for details.



DEAR POLE BARN GURU: Building a new pole barn in a Texas barn style framing. I want to insulate the roof and walls. I plan to use 1-1/2″ EPS foil faced foam but am not completely positive where to put the vapor barrier to prevent condensation as if I do spray foam between the EPS and girths I’m concerned the spray foam will migrate into the rib blocking some airflow. Building will be 2×4 trusses 3:12 pitch 28′ wide on 2′ centers allowing the possibility to put a ceiling in at a much later date. Enclosed side lean to’s will be 2×6 rafters on the same spacing. I’ve gone down a rabbit hole researching a lot of forums and website data and believe the best way would be to install the EPS between the 2×4 girths and then a reflective radiant barrier. To clarify the girths will be 2×4’s laid flat and with the 1-1/2″ EPS there would be no air gap as bubble style wraps need to work properly. JOE in AUSTIN

DEAR JOE: If you want to do it right, spray two inches of closed cell directly to wall and roof steel and be done with it. If you are absolutely not going to use closed cell spray foam, then reflective radiant barrier should only be used between roof purlins and steel roofing, with well-sealed seams, as a condensation control. For walls – from outside to inside….steel siding, housewrap over bookshelf girts, Rockwool batts, interior vapor barrier, interior finish. For your ceiling, vents eaves and ridge, blow in insulation above ceiling.





This entry was posted in Shouse, Ventilation, floorplans, Building Interior, Budget, Insulation, Professional Engineer, Pole Barn Questions, Sheds, Pole Barn Design, Pole Barn Homes, Building Department, Pole Barn Planning, Barndominium and tagged , , , , , , , , on by .

HOA Restrictions, Plans Only Option (sorry, no) and Site Prep

This week the Pole Barn Guru addresses reader questions about the possibility of adding a brick exterior to a pole building to satisfy HOA restrictions, if Hansen provides a sealed plans only option so a reader can reuse parts of current building, and geotechnical concerns about site prep and dirt for post frame construction.

DEAR POLE BARN GURU: I live in a HOA restricted area that states exteriors must be brick or brick veneer. I purchased the neighboring lot in order to build a 3/4 bay shop on that lot. Is there a way to brick veneer the exterior of one of your buildings? It has to closely match my existing house. Can email you more pictures if that would be helpful. CHAD in JEFFERSONVILLE

DEAR CHAD: HOAs are always a challenge (https://www.hansenpolebuildings.com/2016/12/hoa-requirements/). There are a plethora of ‘thin brick’ options available (please Google “Thin Brick”) any of them can be readily applied to a properly engineered post frame building. I say ‘properly engineered’ as building and wall deflection needs to be limited in order to prevent cracking of veneer.



DEAR POLE BARN GURU: Can I hire you to design a pole barn and get sealed prints for NJ without buying the kit from you? I have a fairly new pole barn on the property and would like to reuse that material for my new barn. SHANE in BRIDGETON

DEAR SHANE: As some of our components are proprietary, our engineers will only seal plans when we are providing materials.



DEAR POLE BARN GURU: The person that will be doing the dirt work for the foundation asked me a question concerning the columns in the ground. He asked if the column will require certain type or quality of dirt, or if there are any samples taken to determine the depth. I have read on your website about all the factors that are taken into consideration when determining the depth of the hole and size of the columns, but I don’t remember seeing anything about soil samples. Thank you in advance for your time. ALLEN in CABOT

DEAR ALLEN: In an ideal dream world, our clients would have a geotechnical engineer do an onsite evaluation of soil strengths and forward to us.

Without this information, our engineers use presumptive load-bearing values found in IRC (International Residential Code) Table R401.4.1 and IBC (International Building Code) Table 1806.2. From decades of experience, these values end up being very conservative in relationship to actual geotechnical testing results.

Most important, if you are bringing in fill, is for it to be adequately compacted in no greater than six inch lifts.

One of our previous clients had some site preparation questions answered for his particular circumstances, his experience may prove helpful to you: https://www.hansenpolebuildings.com/2017/02/building-site-preparation/

This entry was posted in Pole Barn Structure, Pole Building Siding, Footings, Alternate Siding, Rebuilding Structures, Professional Engineer, Pole Barn Questions, Pole Barn Design, Pole Building How To Guides, Pole Barn Planning and tagged , , , , , , , , on by .

Footers, Building Over Old Pool, and Home Made Glu-Lams

This week the Pole Barn Guru answers questions about need for a “footer,” building over an old pool, and the efficacy or viability of building ones own glulaminated posts.

DEAR POLE BARN GURU: You have most likely answered this question before. I don’t seem to be able to find it.

I am thinking about building a post frame home. Building department says if I put the post into the ground I do not need a footer for the floor slab. We have cold winters where ground may freeze. Will I have a problem with the slab moving? JOHN

DEAR JOHN: Congratulations for considering a post frame home as your solution. They make for wonderful homes (I live in one).

Your Building Department is correct in saying you do not need to have a “footer” for a thickened slab in a post frame building. However it will stand a great possibility of moving without taking some precautions.

Proper site preparation is a key to success – https://www.hansenpolebuildings.com/2011/11/site-preparation/.

If you are going to do radiant in floor heat (strongly recommended) you will need to provide a layer of insulation under your slab. Most jurisdictions have requirements for all homes to meet minimum energy saving requirements, this includes insulating around your building’s perimeter:



DEAR POLE BARN GURU: I have a unique building situation. I have an in-ground 18′ by 36′ rectangular swimming pool with the shallow end being 14′ long by 18′ wide with a depth of 4 feet, and the deep end 22′ long by 18′ wide with an average depth of 6 feet. I want to drain the pool and then build a structure of 22′ by 40′ to cover the area previously occupied by the pool. I do not want to demolish the pool, unless I have to.

Floor PlanWhen completed, the new building would be two stories (8′-10′ of it will be below the foundation of my existing house, with a finished basement with a 9′ floor to ceiling height, and a second floor as the main living floor with a cathedral ceiling whose peak will run the 40′ length of the new addition. Will a pole barn structure work for me? If so, will your company draw up the plans and engineer the project so that I can get it approved by my City Building Department? DENNIS in SEASIDE



DEAR DENNIS: I am not a Geotechnical Engineer, but I imagine at the least your Building Department will require the filling of your existing pool to be designed by one. You will want to be discussing with the city. Once it has been adequately filled and compacted your site becomes just like any other one. I will assume your ‘basement’ reference is in comparison to your existing home’s grade. Yes, a pole barn (post frame) structure will work for you. We have a program set up with an independent floor plan expert to take care of your interior spaces: http://www.hansenpolebuildings.com/post-frame-floor-plans/?fbclid=IwAR2ta5IFSxrltv5eAyBVmg-JUsoPfy9hbWtP86svOTPfG1q5pGmfhA7yd5Q and we provide the structural engineering to go with your building.



DEAR POLE BARN GURU: For a pole barn is it ok to make laminated poles from say 4 2x6s screwed and glued, ground contact treated? CHRIS in CUSHING

DEAR CHRIS: Ultimately your answer will need to come from whatever engineer you have hired to design your building.

Unless those ground contact treated 2×6 are UC-4B rated, they should not be used in ground to begin with. Here is my take on your idea: https://www.hansenpolebuildings.com/2017/01/making-glulam-columns/







This entry was posted in Columns, Lumber, Pole Barn Questions, Pole Barn Design, Pole Barn Structure, Concrete, Footings, Professional Engineer and tagged , , , , , on by .

Upstairs Conversion, Building Plans, and Basic Buildings

This week the Pole Barn Guru answers questions about converting an upstairs space in a pole barn to a living space, Plans only packages, and a basic building kit.

DEAR POLE BARN GURU: I have a 30×30 pole barn with upstairs 2 story shingle roof. Want to convert it to a living space for my grandchildren and their mom my son passed away she needs a place to live.

Thank you RICH in CREAM RIDGE

DEAR RICH: You should begin by finding out if your local Planning Department will allow you to convert this barn into a residence. Once you assured they will be happy, you should engage a Registered Professional Engineer to determine if it will be structurally adequate to be used as a residence.



DEAR POLE BARN GURU: Hello, Do you sell plans for pole barns?  I live in Canada and work as a social worker working with at risk youth.  My wife and I use horses as a way to work with children who have difficulty in communication, self-esteem, anger and other concerns that prevent them from reaching their full potential.

The struggle we have is that everything we do is outside which means we simply cannot do anything during the winter and early spring months.

I have talked to several builders and truss makers who insist that trusses must be spaced every two feet so for a 100 X 60 pole barn I would need 51 at a cost of $30,000; factoring in all of the other costs it is simply out of our reach.  I have read that you suggest trusses can be spread further apart and one of the builders I have spoken to said I should ask for some plans and he would see what he could do, however is very skeptical.

I sincerely hope you can assist and thank you in advance.

Many thanks. PETER in ST. GEORGE

DEAR PETER: Thank you very much for your interest. We are not a plans service, we do supply engineer sealed plans with all of our buildings (along with complete installation instructions). Currently we are unable to design to Canadian Building Code, however we hope to incorporate this option in 2020. Right now, all of our Canadian friends are ordering buildings designed to U.S. Codes. Trusses most certainly do not have to be every two feet. Depending upon your snow load, I would expect to see a pair of trusses every 10 feet. We do have a sample plan available on our website: https://www.hansenpolebuildings.com/sample-building-plans/



DEAR POLE BARN GURU: Hello, are the base prices listed for the kit only or does that include shipping, tax and installation? NATE in EFFINGHAM

DEAR NATE: Thank you for your interest in a new Hansen Pole Building. Prices listed at https://www.hansenpolebuildings.com/pole-barn-prices/ are for engineer sealed plans, complete materials package delivered to your accessible site, 500 page step-by-step installation manual and unlimited free technical support. Sales tax varies by state (and sometimes city or county) and we only collect in states mandating we do so.

While our buildings are designed for an average physically able person to assemble their own beautiful new building, should you be not so inclined, installation services are available through our Independent Builder Network.



This entry was posted in Barndominium, Pole Barn Questions, Pole Barn Planning, Trusses, Lofts and tagged , , , , , on by .

Plans, Scissor Trusses, a Possible New Building

This Monday’s Pole Barn Guru answers questions about plans for buildings, the flat portion of a scissor truss bottom chord, and a possible new building for a “local.”

DEAR POLE BARN GURU: Wondering if you sell plans only. I already have a building designed and wonder what it would cost to make sure it is built correctly? Our area doesn’t require stamped drawings. Thanks LEE in RICHMOND HILL

building-plansDEAR LEE: We only provide building plans along with an investment into a Hansen Pole Buildings post frame building kit package. We firmly believe every post frame building should be structurally designed and plans sealed by a Registered Professional Engineer. Whether stamped drawings are required or not, if an engineer didn’t design it, who did? It is frankly just not worth risking your life or your valuable possessions in an attempt to save a few dollars.
You won’t be able to acquire needed components yourself for what we can deliver them to you – and we insure everything is provided, so you aren’t making needless trips to your local hardware store. You truly don’t want to become a piece-mealer: https://www.hansenpolebuildings.com/2014/03/diy-pole-building/.



DEAR POLE BARN GURU: Hello, Trusses sitting on top of post. I have scissor trusses it looks like the trusses were made for a 6 x6 post I have 6 x10 post. The flat that is cut on the truss is only 6″ so only thing that touches the top of the post is the 6″, 4″ then would be unsupported. This cannot be right? KURT in SAINT HELENS

DEAR KURT: Most metal plate connected wood truss manufacturers fabricate their scissor trusses with a cut at bottom chord ends allowing for a level bearing point on top of either walls or notches cut into post frame building columns (see “H” in example).


Length of this cut is typically equal to minimum required bearing surface, with a minimum of 3-1/2 inches. What your trusses have is entirely within structural design parameters and will perform admirably and is “right”.



DEAR POLE BARN GURU: Hi there.

We’d like to build in Hurley, WI. Can you deliver there and what, if any, service do you offer?

Looking to build a place to put a shop, park a 30 foot camper, a fishing boat and two trucks, plus some storage.  Would like a lean to either to side or wrap around.

Please advise as to whether it is reasonable for us to inquire with your company, given the distance.

Thank you! VICKIE in HURLEY

About Hansen BuildingsDEAR VICKIE: Considering it is only 375 miles from Browns Valley to Hurley, you are almost local! Hansen Pole Buildings provides post frame buildings in all 50 states (yes – even Alaska and Hawaii), so Wisconsin is not an issue.

A member of our team of Building Designers will work with you to arrive at a design solution best meeting with your needs, budget and available space. We provide third-party engineer sealed structural plans for your new building, along with all supporting calculations. You get a completely itemized Materials’ List, delivery to your site and a comprehensive step-by-step manual to guide you (or your builder, should you opt to use one) through assembly. If, for some obscure reason) you get stuck, or off track we provide unlimited free Technical Support via Email during your construction process.

Not only is it reasonable for you to inquire with us – you would be making a grave error should you not! Please give us a call (866)200-9657 and ask to speak with a Building Designer.



This entry was posted in Pole Barn Questions, Building Styles and Designs, Trusses and tagged , , , , , on by .

Electrical Installation, A Frequent “Plans” Question, and Vapor Barriers

This Monday the Pole Barn Guru answers questions about running electrical through posts, a question often received about plans, and vapor barriers.

DEAR POLE BARN GURU: I’m looking for the lvl beam, floor / roof joist and wall purlin penetration layout for plumbing and electrical install.

I will not need many horizontal penetrations. A few for electrical install and the hot and cold water lines

I will need to have vertical penetrations in the wall purlins for the waste and vent lines.

Max hole size

Spacing between holes

Hole location in joist / lvl beams. Upper middle lower?

Thanks, GREG in LEAVENWORTH

DEAR GREG: Here is some information from Hansen Pole Buildings’ Construction Manual:

Q: Can electrical be drilled through framing or columns?

A: Very little drilling, if any, will be needed for holes in order to run electrical wires. Wall framing (girts) extend or are placed so as to leave a 1-1/2 inch space between outside of wall columns and siding.

  Think of a hole being drilled through as being an “open knot”. Lumber grading rules refer to these as being “Unsound or Loose Knots and Holes” due to any cause. Most structural framing – like wall girts and roof purlins or posts and timbers are graded as Number 2.

  For practical purposes, a hole up to just less than ¼ of board face being drilled through will be within grade in #2 lumber. Example: 3-1/2” face of a 2×4 a hole up to 7/8” may be drilled through, as often as every two feet. Allowable hole sizes are reduced and spacing increased for higher grades of lumber.

Here is APA’s guide to drilling holes in LVLs:
http://murphyplywood.com/pdfs/engineered/APA_LVL_Hole_Drilling.pdf



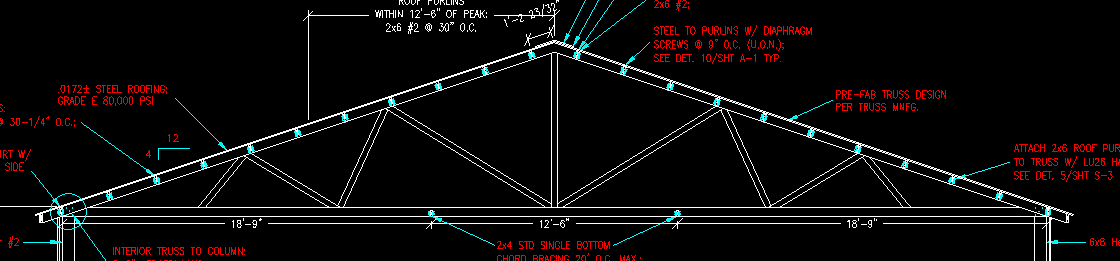

Engineer sealed pole barnDEAR POLE BARN GURU: Where do I get plans to take to the state to get a permit? DAVID in EDINBURGH

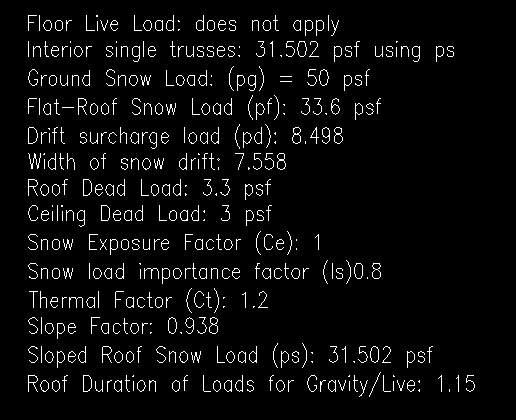

DEAR DAVID: With your investment in a new Hansen Pole Building, we will provide two sets of third-party structural engineer sealed plans and pertaining calculations for your to submit for your Building permit.



DEAR POLE BARN GURU: I have a 40×40 pole barn that is open on one gable end and used for vehicle and trailer parking. I am re-siding and re-roofing with metal over purlins. Do I need a vapor barrier such as roofing felt under the metal? KEVIN

DEAR KEVIN: You should have something to prevent condensation. My first choice for ease of installation would be to order roof steel with dripstop or condenstop attached by roll former. https://www.hansenpolebuildings.com/2014/07/condenstop/

If this is not an option, use a reflective radiant barrier with an adhesive pull strip attached for ease in sealing seams.





This entry was posted in Pole Barn Questions, Roofing Materials, Pole Barn Planning, Steel Roofing & Siding and tagged , , , , on by .

Installation, Plans, and Quotes

This week the Pole Barn Guru answers questions about the installation of a building, plans provide to erect the structure, and a quote for a potential client.

DEAR POLE BARN GURU: Do you offer installation? Not sure I would have help to put it up.

Thanks JESSICA

DEAR JESSICA: Thank you for your interest in a new Hansen Post Frame building. Our complete post frame building kit packages are designed for an average person who can and will read English to successfully assemble their own beautiful building. We have had clients do nearly every construction process step without any other person to assist them. If you do end up needing an extra pair of hands or more (even complete assembly), capable help is most usually no further away than a free Craigslist ad under “gigs”.

DEAR POLE BARN GURU: Good morning, I hope to be helping a ‘friend of a friend’, get plans ready for a Cracker Barn type home they would like to build. They have never built a home, or even thought about it, but they want to ‘do it their self’ which is not a good plan for a first timer. I have a few of her emails where I see she has reached out to Hansen several times, so I wanted to start here.

My question is:  Do you have anyone in the Nashville TN area who could oversee her project? I have noticed that some ‘pole barn’ companies do, and some do not.  She would definitely need a ‘do’.

Thank you~ GINGER in NASHVILLE

Engineer sealed pole barnDEAR GINGER: Actually “do it their self” is a perfectly acceptable plan for a first timer – at least as we provide post frame building kit packages. Our plans (view sample plans here: https://www.hansenpolebuildings.com/sample-building-plans/) are detailed down to showing each and every board and connection, our nearly 500 page Construction Manual walks every DIY person through assembly process step by step and includes actual photos. Feeling stuck, unsure or have any other assembly challenge? Hansen Pole Buildings provides free Technical Support to work with clients to guide them around pitfalls.

I have personally been involved with nearly 20,000 successful post frame building projects. One thing in common with each one – there has never been a need for an onsite project overseer. If your friend of a friend can and will read English, they can build for themselves are far nicer finished building than they will get from any building contractor.



DEAR POLE BARN GURU: Good afternoon! My husband and I own land in Defiance County, Ohio and have discussed building a residential pole barn. I’ve reviewed your website and am interested in getting more information about your residential pole barns. Could you point me in the right direction as to where to start? Any information you have would be greatly appreciated.

Thank you! AMY in DEFIANCE

DEAR AMY: Please dial 1(866)200-9657 and discuss your wants and needs with a Hansen Pole Buildings Designer.





This entry was posted in Pole Barn Planning, Pole Barn Questions, Constructing a Pole Building and tagged , , , , on by .

Building Over a Basement, an OHD Modification, and Interior Photos?

This week the Pole Barn Guru answers questions about building over a basement, an OHD modification, and interior photos of one of our buildings?

Engineer sealed pole barnDEAR POLE BARN GURU: If I order a pole barn knowing that it will be built over a basement will the plans show how to install the floor or do I have to figure that out myself? I would really like the answer quickly if possible. Thank you. MARYJANE in MANZANOLA



DEAR MARYJANE: Our third-party engineer sealed plans include connections of all members we supply in your complete post frame building kit package. This would include how floor would be attached to your basement walls.

DEAR POLE BARN GURU: I have a 18’s by 10’ tall sectional door and need to add a section to be at least 11’-6” tall for a new camper to fit. Trying to find a garage door contractor that can do the modification on the door. I will raise the header and cut the barn metal to fit new section myself. Just wondering if you have a recommendation on a contractor or an opinion. Thanks. RALPH in RAY TOWNSHIP

DEAR RALPH: Before doing a structural remodel of your building, it would be prudent to discuss it with your RDP (Registered Design Professional – engineer or architect) who produced your building’s original design. Making structural changes without their approval could result in voiding any warranty and, at worst, a collapse – just isn’t worth it.

Each sectional door manufacturer has a slightly different panel design. You will need to ascertain whom manufactured your door, then contact them and ask for a referral to dealers closest to you.

As for contractor recommendations, I just will not make them, as if there is a challenge in dealing with them for any reason, chances are I will get blamed – even if I were to tell you to vet them thoroughly.

DEAR POLE BARN GURU: How much is the pole barn shown on the front of this website. Do you, have any interior pictures? https://www.hansenpolebuildings.com/uploads/img_0_5c9bda48b8f54.png

RHONDA in WAVERLY

DEAR WANDA: Thank you very much for your interest in a new Hansen Pole Building. As pictured, this building is $39,999. As we furnish only complete post frame building kit packages, rarely do we have interior photos, however you can configure interior walls wherever you desire, to best meet your particular needs.



This entry was posted in Building Contractor, Rebuilding Structures, Professional Engineer, Overhead Doors, Pole Barn Questions, Pole Barn Planning and tagged , , , , on by .

Eave Lights, Building Plans, and Foundations

Today Mike answers questions about eave lights, drawing building plans, and foundation plans.

DEAR POLE BARN GURU: How to I attach the poly eave lights to the building frame? RUSSELL in BOISE

DEAR RUSSELL: Polycarbonate panels are best predrilled for screw fasteners using a 3/8” bit. Screw pattern for eave lights is same as for sidewall steel.

Drive #10 x 1” white screw fasteners perpendicular to light panel’s surface and tighten moderately. Fastener head and washer/gasket is to sit snugly and fully on panel’s face, without squeezing gasket and distorting washer. Over tightening will distort washer, panel and ruin gasket, causing leaking and panel damage, resulting from undue internal stresses. Tilted fastener insertion will deform washer, damage gasket, cause leakage and originate undue stresses on panel eventually leading to failure. Tighten fasteners by hand or by an adjustable torque power-screwdriver.

Engineer sealed pole barnDEAR POLE BARN GURU: I’m have a question related to the construction of a custom building. I see that you have some sample building plans on your web site. Do you typically produce the plans for the buildings that you construct or do you recommend that a client work with an architect to have plans drawn up before accepting a construction project? If you do recommend that clients provide plans, do you have a list of architects that you prefer to work with?

Thanks in advance, MATTHEW

DEAR MATTHEW: We (Hansen Pole Buildings and our contracted third-party engineers) produce plans for post frame building kit packages we provide. For clients who feel more comfortable working with an architect, we would recommend contracting their services for conceptual work (aesthetics, room layouts and sizes, etc.) and leave structural aspects (permit/construction plans) to our team.



DEAR POLE BARN GURU: Do you have any experience with anchoring a building to an existing slab?

I talked with you before about door options, but now have ran into the problem that the building I am going with will now sit on the anchor plates that I had installed in the slab. Just curios if you know what my best options could be for anchor bolts. Thanks. MICHAEL

DEAR MICHAEL: All steel buildings usually do not come with engineering for a foundation. You are going to have to consult with your foundation engineer and get a fix from them, as no one else can legally make this change.













This entry was posted in Footings, Professional Engineer, Fasteners, Pole Barn Questions, Concrete and tagged , , , , , on by .

A Residential Pole Barn, Missing Lumber, and Building on Existing Slab

Today the Pole Barn Guru answers questions about plans for a residential pole barn, lumber going missing, and to building an existing slab.

DEAR POLE BARN GURU: Hello, I’m looking to build a residential pole barn. I would need enough space for 3 bedroom 2 bath. How big of a pole barn would I need? CULLEN in ROCHESTER

DEAR CULLEN: It depends upon what sort of spaces you want to live in. I grew up in a home which was just as you describe and only 960 square feet. Conversely, right now I live in a home which has one bedroom, 1-1/2 baths and has 2400 square feet of living space.

I encourage you to go to lots of open houses, take your tape measure and a notebook. When you find rooms feeling comfortable to you, measure them. Consider spaces you need to create for your lifestyle. Don’t short yourself when it comes to closets, storage spaces, etc. Do you need a family room and a living room? Maybe just a great room?

Once you get rough sizes and needed spaces figured out, fit them together like a jigsaw puzzle to make most efficient use of space. Try to minimize hallways as well as travel distances – think about how many trips get made to a laundry room. How many footsteps are taken during those trips between opposite house ends? Place those utility areas where they are most convenient.

When finished, draw a box around your creation and this will give you space you need.

DEAR POLE BARN GURU: What grade lumber should we use for the roof purlins on a pole barn building? It appears we have run very short on our project (I think somebody made off with a bunch during the night)! Prime, #1, #2, etc.???? Building in Northeast Pennsylvania, 4ft OC trusses, purlins spaced 2ft OC. JOEL in DUPONT

DEAR JOEL: Sadly jobsites suffer from a high incidence of pilferage. When I was a post frame building contractor, we did a big project in Northern Idaho. We’d lose nearly a unit of 7/16” OSB every night until we had a fence put up around our materials! Apparently it was an overly friendly neighborhood where everyone shared without asking.

To find out appropriate grade for roof purlins you are short, refer to your engineer sealed plans provided with your building kit package. They will specify size, grade and spacing.

DEAR POLE BARN GURU: I have an existing block and slab detached garage. It is old and well built but smaller than I want and the overhead doors are on the wrong face for my purpose. I would like to replace this 24×24 structure with a 36×60 pole barn. Removing that much concrete and then replacing it will add a good bit of cost and time to the project. Would it be possible to use the existing slab and foundation for the posts that would be on it using brackets and the rest of the posts set more traditionally in concrete or using piers and wet set brackets? ROB in ANNAPOLIS

DEAR ROB: Provided your existing concrete has adequacy to support your new building, it would be possible to use dry set anchors to mount columns in those areas. If any doubts about adequacy, you should consult with a RDP (Registered Design Professional – architect or engineer) who can evaluate your situation in person. For cost and ease of construction, I would typically recommend balance of columns being placed in augered holes.



This entry was posted in Pole Barn Planning, Concrete, Footings, Lumber, Pole Barn Design, Building Styles and Designs and tagged , , , , on by .

Reduce Heat, Garage Kits, and Updates to Aging Building

Reduce Heat, Garage Kits, and Updates to Aging Building

DEAR POLE BARN GURU: I’m looking to build a 40×48 monitor style barn with a 16×48 loft in the center. I don’t plan to heat or cool the loft but would like to reduce the heat in the summer. My first plan is to use a light color or Galvalume for roof metal. My second idea and where I need more advice is on insulating the roof. I was thinking about first laying down foam board insulation and then putting metal roof down. I’m sure there are issues with this option please help me out. I also want to use the insulation to help deaden the sound when it’s raining. MICHAEL in ENTERPRISE

Wood Horse BarnDEAR MICHAEL: Many different colors of “cool roof” steel are now available, which adds far more flexibility in aesthetics – one is no longer limited to bare Galvalume or galvanized, or white- https://www.hansenpolebuildings.com/selecting-building-colors/
Foam board insulation between the roof purlins and the steel roofing would be one of the worst possible choices you could make, from a structural standpoint. It allows for the roof screws to flex within the thickness of the insulation, creating leaks and reducing the strength of the roof steel to resist wind shear. Some other options would range from installing a radiant reflective barrier under the roof steel, or (better yet, although more expensive) using closed cell spray foam insulation.

DEAR POLE BARN GURU: Hello, I am interested in one of the garage kits I found on The Home Depot’s website. I would like to see floor plans and interior dimensions for this kit. And what size would a cement pad need to be to fit under this structure? 48ftx60ft? Hope to hear back soon. Thank you! DAYNA in EAST TEXAS

DEAR DAYNA: The beauty of post frame buildings is a concrete slab is not required in order to support the building. As to floor plans – unless otherwise requested by a client, most post frame buildings are clearspan structures, without any interior columns or partitions. This allows for the total flexibility to place walls wherever one chooses, if any. The quickest way to hear back soon is to include an email address to send responses to.



DEAR POLE BARN GURU: Hello. We are starting to look into getting some new insulation and facing put in our shop. The current product is at least 15-20 years old. We were going to just carefully wipe down the dirty putter facing and postpone this project for another year or two, but that job in itself quickly became a hassle. As we are currently looking into which insulation and facing we will replace it with, we are trying to figure out what kind of insulation facing was originally put on that we have right now. The facing itself is exposed on the walls and ceiling besides the first 8’ of wall cover at the bottom. Do you know of any way to determine what type of facing we have? I attached a few pictures of it in case you might be able to help out with any guesses…

Thanks a lot for your help! JON in HANOVER

DEAR JON: Your metal building insulation has a WMP-10 facing, which is generally used in a typical metal building application where the walls are exposed to light to moderate traffic. It obtains a mid-grade durability. The front side is composed of polypropylene insulation facing, with a white kraft paper backing on back side. WMP-10 is slightly heavier than WMP-VR facing.




This entry was posted in Trusses, Concrete, Insulation, Roofing Materials, Pole Barn Planning and tagged , , , , , on by .

Plans only? Girts Placed Correctly, and Sheeting

Engineer sealed pole barnDEAR POLE BARN GURU: Hi, do you sell pole barn plans without material kits? I’m interested in pricing a set of plans from you and procuring my own materials. If that’s a service you can provide please let me know. I’m looking to get a plan set for a 40’x45′ pole barn.

Thank you, DAMIEN in PORTLAND

DEAR DAMIEN: Here is an article with all of the information you will need: https://www.hansenpolebuildings.com/2017/06/pole-building-plans-sale/



DEAR POLE BARN GURU: my side wall columns are 4 ply 2×8’s and are a little over 7″ deep. My commercial girts are 2×10’s(9.25″). The girts are extended past both the skirt board and the 2×4 at the top of the wall by 2.25″-1.5″=0.75″.> How is this supposed to work? RICK in LUCEDALE

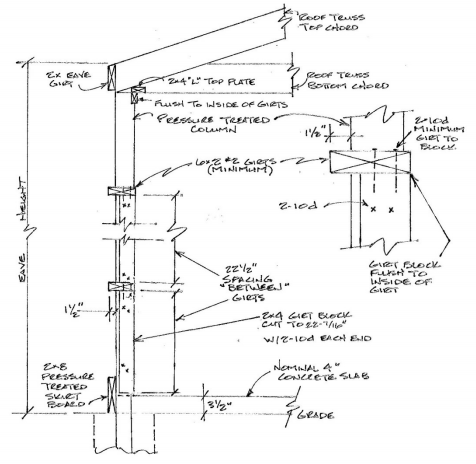

DEAR RICK: Place the girts so the outside of the girt is 1-1/2″ past the columns, any excess will be to the inside. When you sheetrock, the drywall will be attached to the girts and go right over the columns. See Chapter 29 of the Hansen Pole Buildings Construction Manual, most common mistake #4.



DEAR POLE BARN GURU: Does a residential pole barn home require exterior and roof sheathing? And if not required, would you recommend osb or plywood sheathing?
Thank you, JOE in SANDY RIDGE

DEAR JOE: If the siding and roofing are both roll formed steel panels, then no other sheathing would be required, unless the load situation is such as to require sheathing under the steel for shear resistance purposes. You should, however, be using Building Wrap under the wall steel and make some sort of provision for condensation control under the roof steel (either a radiant reflective barrier, sheathing with 30# felt, Condenstop/Dripstop or closed cell spray foam as examples).

As far as product – unless you are counting upon the sheathing being the holding point for the screws, OSB will do everything you need it to do.



This entry was posted in Alternate Siding, Building Interior, Roofing Materials, Steel Roofing & Siding and tagged , , , , , on by .

A Retro-Fit, Truss Support? and Sliding Door Installation

The pole barn Guru looks at a Retro-Fit, truss supports, and installing a sliding door.

DEAR POLE BARN GURU: I have a question about Retro-Fit insulating my pole barn. I live in Southwest Michigan and bought my house with an existing 40’x60′ building, just used for storing farm equipment before I acquired it. Steel roofing straight to the roof purlins and steel siding straight to the wall purlins. Can I put a metal ceiling in with blown fiberglass insulation above and metal walls with Batts between the inside wall and outside wall, or do I need to have some sort of vapor barrier? MITCH in MICHIGAN

DEAR MITCH: First things first, in order to retro-fit the trusses, confirm the trusses are capable of supporting the weight of the steel liner panels and insulation. Most post frame building trusses are not designed to support a ceiling. There should be a stamp on every truss which identifies the truss manufacturer as well as the design loads. You need a minimum three psf (pounds per square foot) bottom chord load to support the ceiling. If it is less, and you can contact the truss manufacturer who should be able to provide an engineered repair to upgrade the trusses, for a nominal fee.

You will need to have some form of thermal break below the roof steel – my choice would be closed cell spray foam. On the walls, you should really have a building wrap between the steel and the framing, however an inch or so of closed cell spray foam would work, filling the balance of the cavity with unfaced fiberglass, then a well sealed vapor barrier on the inside.



Engineer sealed pole barnDEAR POLE BARN GURU: Pole Barn Guru, do you have to have girt under end trusses. End trusses setting on 2×12 from header and nailed to 6×6 pole with 2×6 blocking below trusses 24″o.c. sheated header 3 2×12 notch blocked and clipped. STEVE in CHEYENNE

DEAR STEVE: In order for me to answer your question, I would need to see the engineered plans for your building. If you are unsure of how to determine from your plans, you could contact the engineer of record who designed your building and ask him or her.

DEAR POLE BARN GURU: On a sliding 4×8 walk in door, on the barn exterior are all 4 sides flat or is the top out the thickness of say 1.5 inches? If it is out will it not seal? If all is flush with it not roll easy? Joe

Figure 27-5

DEAR JOE: The sliding door track needs to be mounted to a ‘track board’ which is typically a 2×6 placed on the face of the sliding door header. This puts the top out 1-1/2″ which allows the door to be able to slide past the adjacent siding without banging against it. Sliding doors do not and will not seal air tight, so this should not be an issue unless you had some sort of unrealistic expectations.

This entry was posted in Professional Engineer, Insulation, Roofing Materials, Steel Roofing & Siding, Sliding Doors, Pole Building Doors, Trusses and tagged , , , , , , , on by .

The Cheaper Roof Style, Plan Sales, and Engineering!

DEAR POLE BARN GURU: For a span of 84 feet, which is cheaper, a single slope roof or a gabled roof? ANTHONY in NEW ORLEANS

DEAR ANTHONY: At almost any span a gabled roof is going to be less expensive. At an 84 foot span, without question it will be significantly so.

DEAR POLE BARN GURU: I am curious if you sell custom plans without the kit. I am interested in a plan for a 26 x 26 pole garage with a room above and dormer on each side. I would like to use local supplies.

Thanks for the info. AIMEE in KALISPELL

Engineer sealed pole barnDEAR AIMEE: Thank you very much for your interest. Hansen Pole Buildings is unique in that we have formed relationships with suppliers all over the United States – including local to you! These relationships allow for the bulk of your materials to be delivered to your site, from suppliers who are generally within just a few miles of you. Due to our tremendous buying power, we are able to negotiate prices on materials far below what either the general public, or even builders would be able to get. We get you the benefits of both worlds – close to home and at a great price.

Many companies, such as ours, do not sell “just pole barn plans”.

Why? Many reasons.

1. We have streamlined our process for efficiency. This means by the time you get your plans, we are far into a ton of series of steps happening concurrently – and have done much of the “work”….which has a cost. People are willing to pay an architect several thousand dollars for house plans, but they are unwilling to pay an appropriate amount for the work involved to produce truly custom pole building plans.

2. You get the plans from us, but decide to purchase your materials “elsewhere” and then are disappointed because you paid a lot more than you thought it was going to cost.

3. Worst of all, you purchase materials that don’t match the pole barn plans from someone else and your building contractor does not build to our plans and blame us when the Building Department won’t sign off on your building.

DEAR POLE BARN GURU: I am building a home on a steep slope, what size foundations should I use for a 8 inch x 8 inch steel column embedded in the foundations, how square and how deep should each column foundation be? Regards ALAN in SAN RAMON COSTA RICA

DEAR ALAN: My step-sister and her husband lived in Playa Potrero for many years, so I have an affinity for Costa Rica.

There are so many variables which would go into the calculation for an adequate footing for your columns. The best solution is to get in contact with the structural engineer in Costa Rica who designed your home. He or she might need to have some soils tests done by a geotechnical engineer to determine the allowable bearing pressure of the soils at your site (I know I would certainly want to have this information). Your engineer will be able to calculate the live and dead loads which will be applied to the column (and hence the footing) to be able to provide you with the information on your foundation which will keep your home standing for generations to come.



This entry was posted in Professional Engineer, Pole Barn Planning, Trusses and tagged , , , on by .

Roof Trusses? Contractor Reviews, and Insulation Installation!

DEAR POLE BARN GURU: I would like to rip off my current roof of trusses that are made of 2x4s 2 feet on center with new one of mono-pitched trusses that are every 4-ft or less on center. The roofing material on top of the new trusses would be a SIP panel of some sort. The unfinished ceiling would be the bottom of the SIP panel. The house would have exposed trusses to create a loftier feel as the ceilings are currently too low. (house is 28 ft wide by 30 feet long)

Is this something that you can help with — the design & manufacture of the trusses/roof?

Thanks! NATHAN in KIRKLAND

DEAR NATHAN: Your Building Department is going to require engineer sealed plans in order to issue a building permit for your project. As such, your best bet is to hire a local engineer who is experienced in wood frame construction to provide your plans. They should come out to your house and do a thorough investigation into the adequacy of the structure to support the loads.

Some thoughts to consider – SIPs are going to prove to be very expensive. You could create a more spacious feel by constructing a knee wall on top of one of the existing walls, then use I joists or parallel chord trusses – either of which can be insulated between to give an adequate R value.

DEAR POLE BARN GURU: How can I find independent customer reviews in Washington state for Pride in Construction. GINGER in TACOMA

DEAR GINGER: Getting independent customer reviews on any building contractor anywhere is a challenge, as most builders do not construct enough buildings to develop much of a track record either good or bad.

Here are the seven steps to not getting yourself burned by any contractor, follow these: https://www.hansenpolebuildings.com/2013/07/contractor-6/ and require a performance bond and you will greatly limit your risk of not getting the finished product you expected. Here is Performance Bond information: https://www.hansenpolebuildings.com/2012/07/contractor-bonding/.



DEAR POLE BARN GURU: I will be installing insulation under the steel roof. Are staple guns the best choice for temporary stabilization until the roof is added? What length staples? Which gauge staples? Narrow? Electric, air or grip staple gun? Recommendations? I will be using metal tape to join each roll of insulation side-by-side.

Trying not to re-invent the wheel, that’s why I went Hansen of course. RALPH in KENNEWICK

DEAR RALPH: From Chapter 14 of the Hansen Pole Buildings’ Installation Guide: Using a minimum 5/16” galvanized staple, staple through insulation to eave purlin top. As an alternative to staples, 1” galvanized roofing nails (with the big plastic washers) also work well.

These fasteners are only going to be needed long enough to get a sheet of steel on top of them, so there is no occasion to get fancy at this juncture. I’ve found a tack hammer to be more than adequate.

Keep in mind, the one edge of each roll of A1V insulation has a pull strip on it, with adhesive under the pull strip. This eliminates the need to use rolls of tape to adjoin each piece of insulation.



This entry was posted in Trusses, Professional Engineer, Insulation, Pole Barn Design, Building Department, Pole Barn Structure and tagged , , , , , , , , on by .

An Apartment Addition?

DEAR POLE BARN GURU: Can you supply me with a copy of the sparrow barn in Texas plans It is a wedding venue I would like to copy. JAMES in HAMPTON

DEAR JAMES: Certainly we can, stamped by a registered professional engineer, and custom designed for your climactic loads – and for free. They come along with your investment in a new Hansen Pole Building complete kit package.

Pole Barn Prices

DEAR POLE BARN GURU: I built a 40x60x14 pole barn, trusses 4’oc, cement floor with seal, foil bubble wrap outside all girts and purlins, vented soffits and continuous ridgevent. Trusses have 5psf bottom cord rating. I have read all the posts of yours I could. Would like to put in 24×40 apartment and was looking to put in BIBS insulation with horizontal bookcase framing but ran into a few questions. I’m concerned about drywall cracking/nail popping if I strap bottom truss cords and apply drywall to that. If I drop the ceiling, however, I’ll have to do vertical studs for the ceiling joists to sit on. I see a problem with fireblocking too. How best do you fireblock behind posts (between girts) with bookcased studs? Vertical studs would be even more difficult to fireblock, with 1.5 inch gaps everywhere. Last question is insulation…..With the impermeable foil bubble wrap up against the steel siding, I was going to use the mesh fabric and BIBS only before drywall. I’m concerned about a vapor barrier against drywall as this will primarily be used in summer with a/c on the interior and an outside humid climate. I appreciate any help and advice. MARCUS in ROANOKE

DEAR MARCUS: I appreciate you being a loyal reader!

You will want to place 2×4 ceiling joists on edge (two inch face towards the floor and sky) every 24 inches between the truss bottom chords, using Simpson 2×4 joist hangers on each end. With 5/8″ gypsum wallboard, screwed on per the manufacturer’s installation instructions, it is unlikely you will experience unusual drywall cracking or nail popping. Properly done, your bookcase studs (wall girts) should be supporting the siding on the outside and drywall on the inside. Installed this way, they effectively serve as fire blocking. In the event your building has “barn” style wall girts (flat on the outside face of the columns), use bookshelf girts of a large enough dimension to reach the siding, as well as extend to at least the inside face of the columns (e.g. 2×8 on a 6×6 column).

Commercial-Wall-Girts_EditedThere is going to be a challenge on the walls….your building should actually have building wrap on the outside of the framing to allow any water vapor in the wall cavity to escape to the outside world. The wall vapor barrier should be on the inside face of the wall girts to prevent moist air from inside of your apartment from entering the wall cavity. The reflective insulation in your walls should be either removed or at the very least punctured frequently, prior to wall insulation being installed.



DEAR POLE BARN GURU: I am installing shutters on my home, which is a barn style home with metal siding.  My husband is very concerned about which type of screws to use to prevent leaking or rusting.  What do you suggest? AMELIA in HONEA PATH

DEAR AMELIA: Builders Edge Shutter-Lok patented fastening system makes installation fast and easy. Shutter-Lok holds in any material. Shutter-Lok features a durable copolymer construction with molded-through color so that there is no paint to ever scratch, flake, or fade. Installation requires drill with 1/4″ masonry bit.

This entry was posted in Insulation, Pole Barn Design, Pole Building How To Guides, Pole Barn Planning, Ventilation, Rebuilding Structures, Building Interior, Professional Engineer and tagged , , , , , on by .
1.866.200.9657
Building KitPrice

Know more about our pricing.

Pole Barn Guru Blog

The industry’s most comprehensive post frame blog.

Ask The Guru

This guru will grant you the answer to one pole barn question!

Pole Building Learning Center

To help guide you in the design of your new pole building.

Photo Gallery

Look at our collection of building photos for creative ideas!

Paint Your Building

Lets pick out some colors!

Most Viewed Blogs

Ask The Pole Barn Guru

Latest Blog Posts

View All
